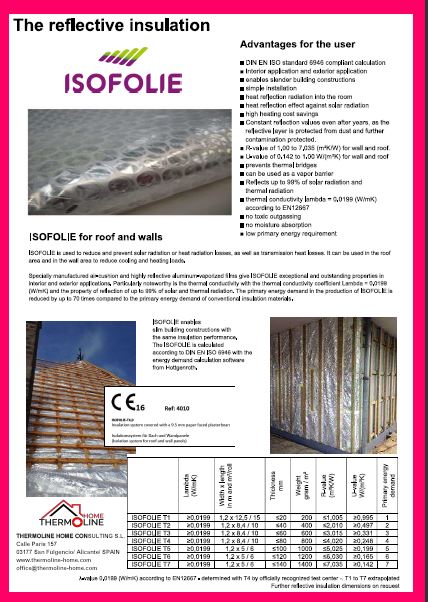

REFLEXION INSULATION

ISOFOLIE® for Roof and Wall

ISOFOLIE® is used to reduce and prevent solar radiation or heat radiation losses, as well as for transmission heat losses. It can be used in roof and wall areas to reduce cooling and heating loads. Specially manufactured air cushions and highly reflective aluminium-vapourised foils lend ISOFOLIE® exceptional and outstanding properties for indoor and outdoor applications. ISOFOLIE® makes slim building construction possible, with the same insulation performance. The ISOFOLIE® is calculated according to DIN EN ISO 6946 with the energy demand calculation software from Hottgenroth. Particularly noteworthy is the thermal conductivity with the thermal conductivity lambda (0.0198 W/mK) and the property of reflecting up to 99% of solar, cooling, and thermal radiation.

ISOFOLIE® for Roof and Wall

DIN EN ISO STANDARD 6946 COMPLIANT CALCULATION
INTERIOR AND EXTERIOR APPLICATION
ENABLES SLIM BUILDING CONSTRUCTION
EASY INSTALLATION
HEAT REFLECTION RADIATION INTO THE ROOM
HEAT REFLECTION EFFECT AGAINST SOLAR RADIATION
HIGH HEATING COST SAVINGS
CONSTANT REFLECTION VALUES EVEN AFTER YEARS, AS THE REFLECTIVE LAYER IS PROTECTED FROM DUST AND FURTHER CONTAMINATION
R-VALUE FROM 0.909 to 5.909 (m²K/W) FOR WALL AND ROOF

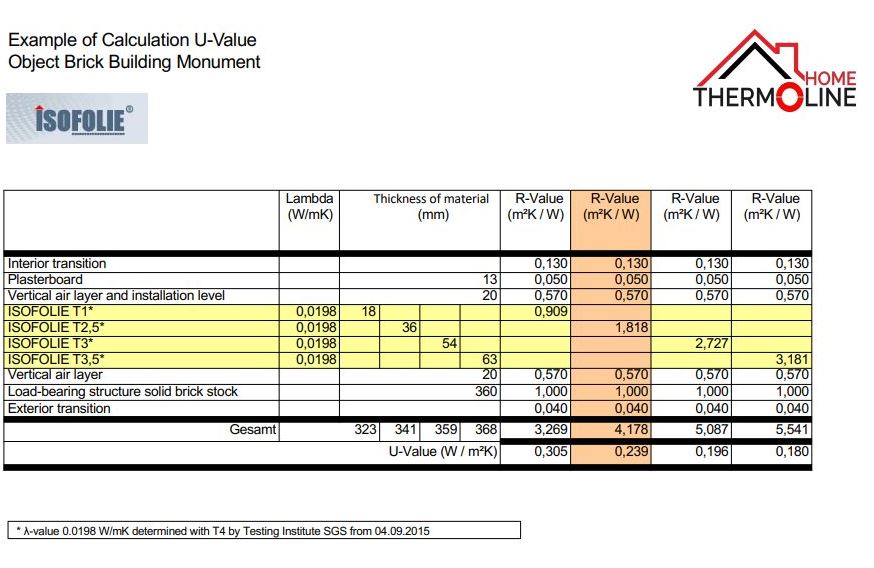

U-VALUE OF 0.169 TO 1.1 W/(m²K) FOR WALL AND ROOF
PREVENTS THERMAL BRIDGES
CAN BE USED AS A VAPOUR BARRIER
REFLECTS UP TO 99% OF SOLAR RADIATION AND THERMAL RADIATION
THERMAL CONDUCTIVITY LAMBDA = 0.0198 (W/mK) ACCORDING TO EN12667
NO TOXIC OUTGASSING
NO MOISTURE ABSORPTION

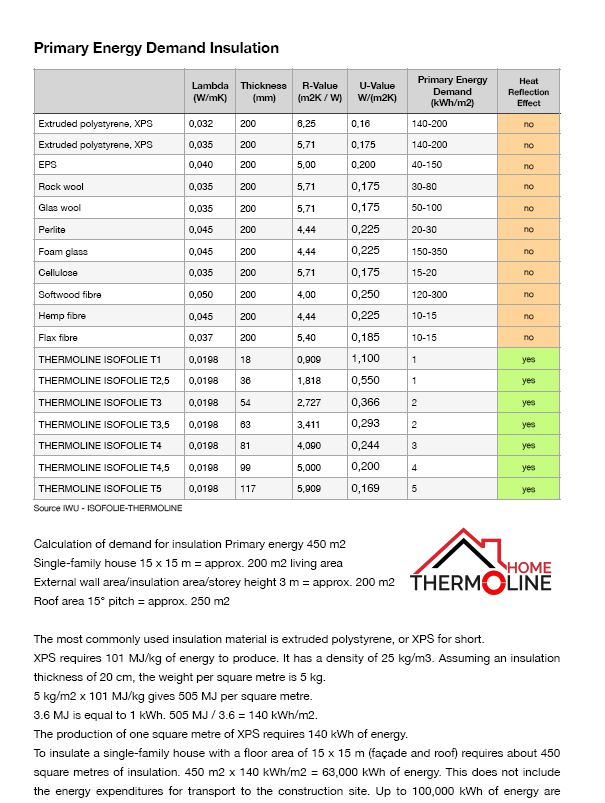

LOW PRIMARY ENERGY DEMAND

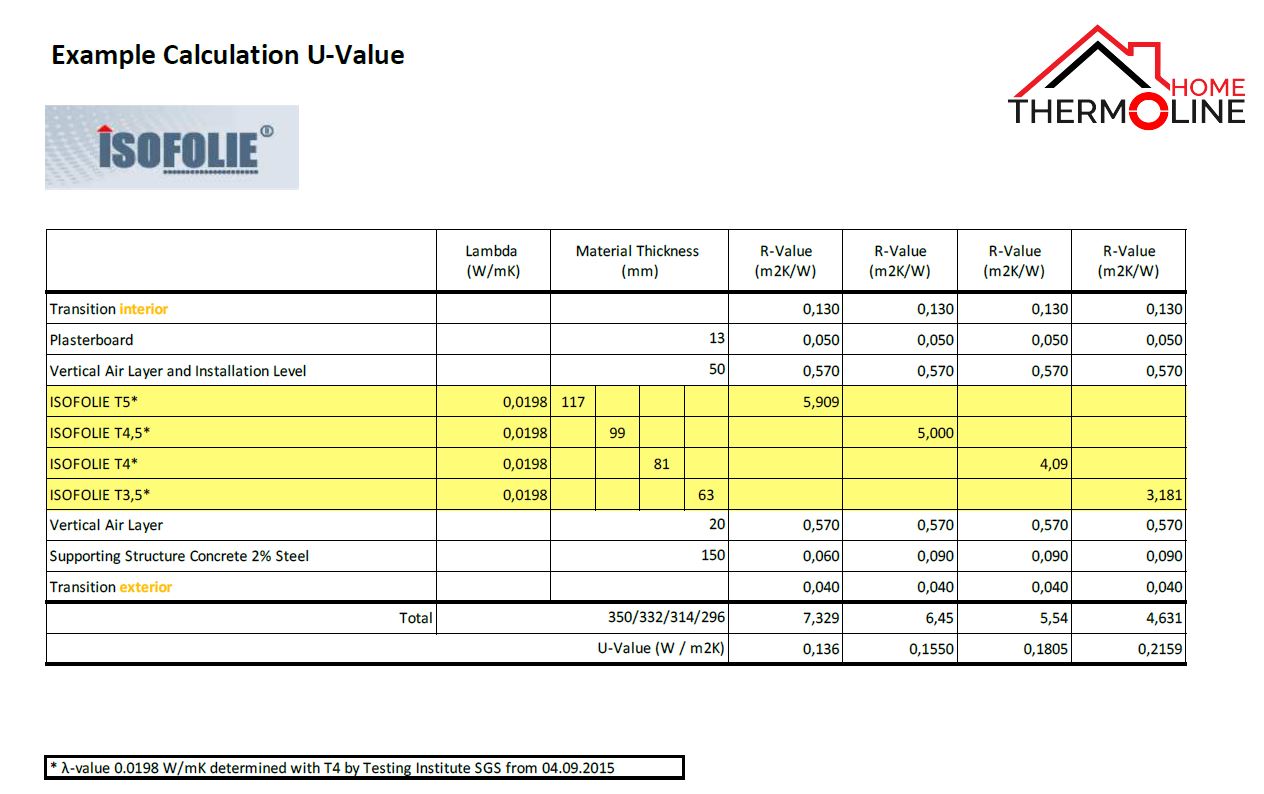

	Lambda (W/mK)	Thickness in mm	R-Value (m²K/M	U-Value W/(m²K)	Primary energy kWh/m²
ISOFOLIE T1,0	≥0,0198	18	≤0,909	≥1,100	1
ISOFOLIE T2,5	≥0,0198	36	≤1,818	≥0,550	1
ISOFOLIE T3,0	≥0,0198	54	≤2,727	≥0,366	2
ISOFOLIE T3,5	≥0,0198	63	≤3,411	≥0,293	2
ISOFOLIE T4,0	≥0,0198	81	≤4,090	≥0,244	3
ISOFOLIE T4,5	≥0,0198	99	≤5,000	≥0,200	4
ISOFOLIE T5,0	≥0,0198	117	≤5,909	≥0,169	5

References

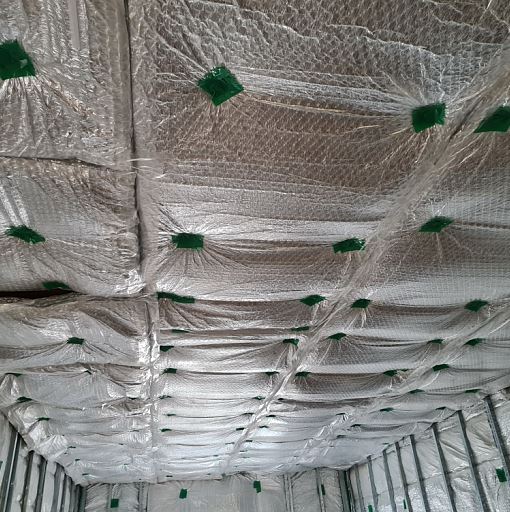

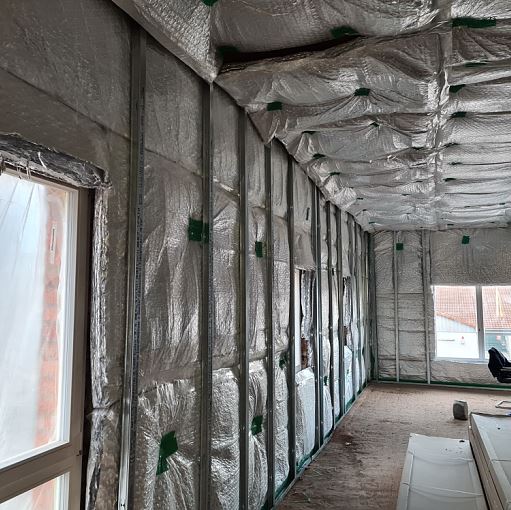

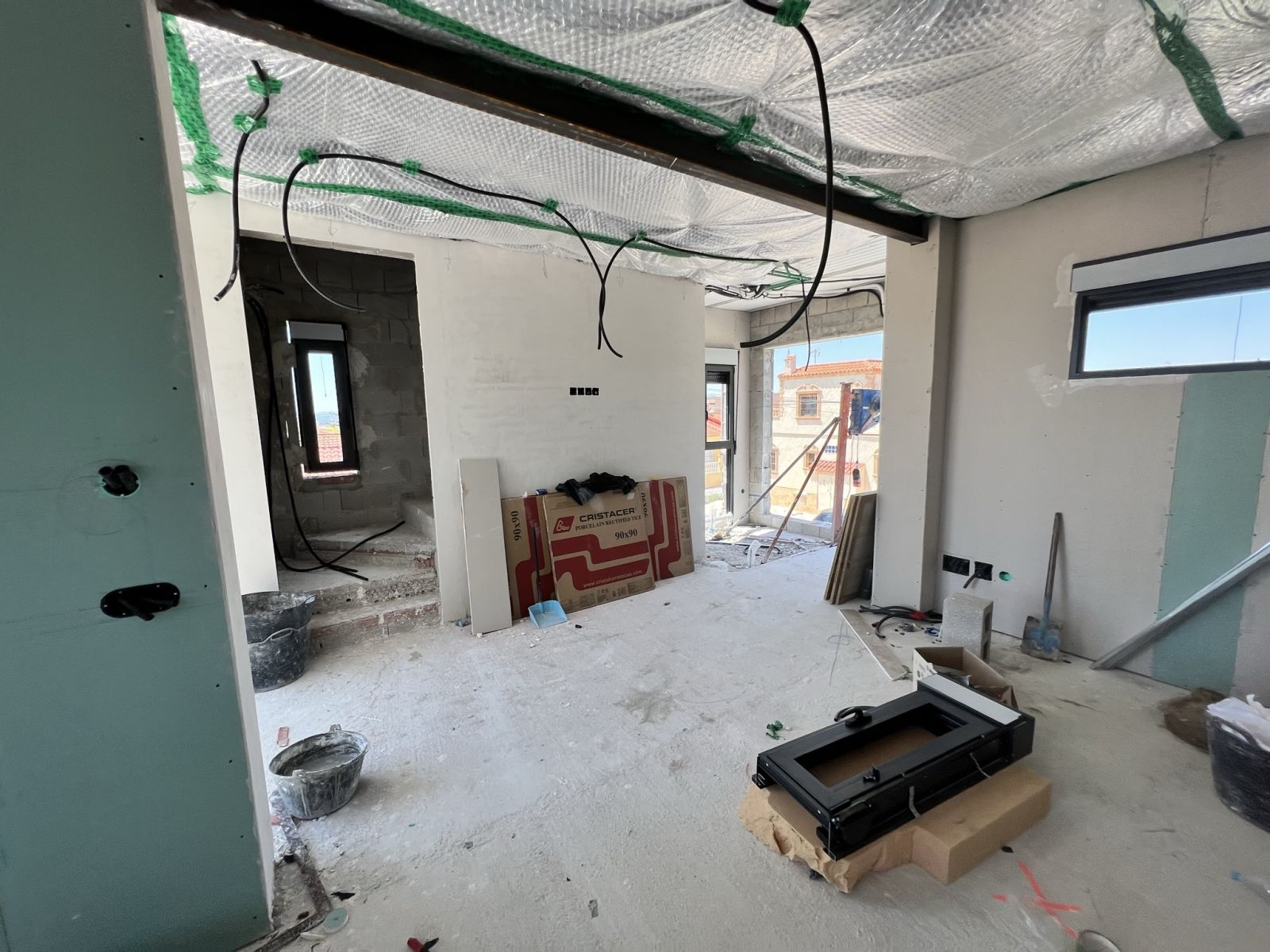

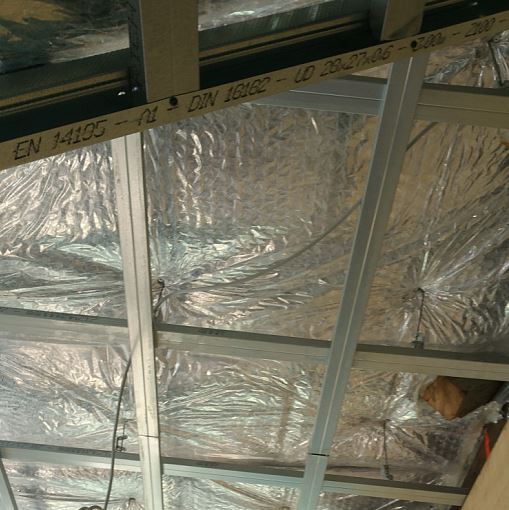

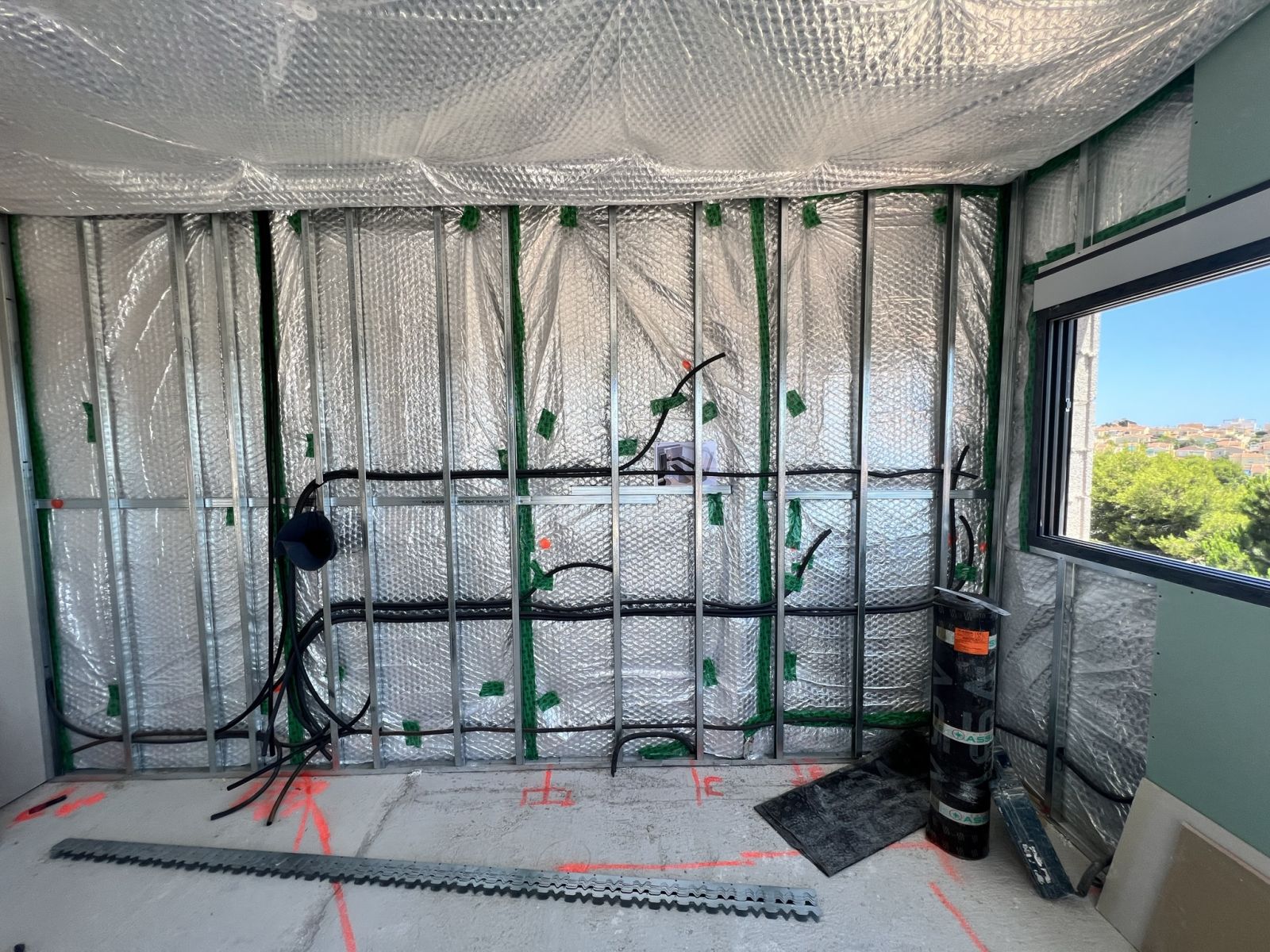

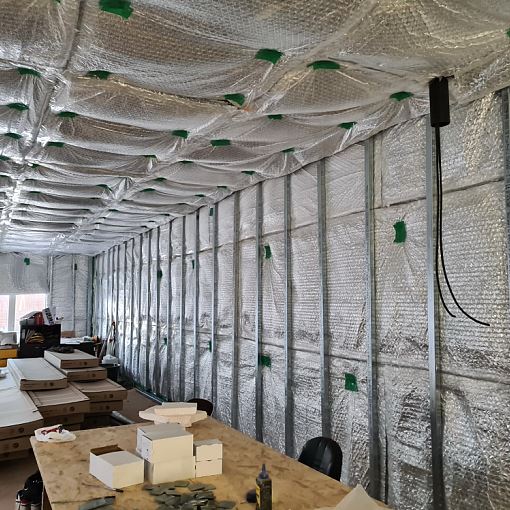

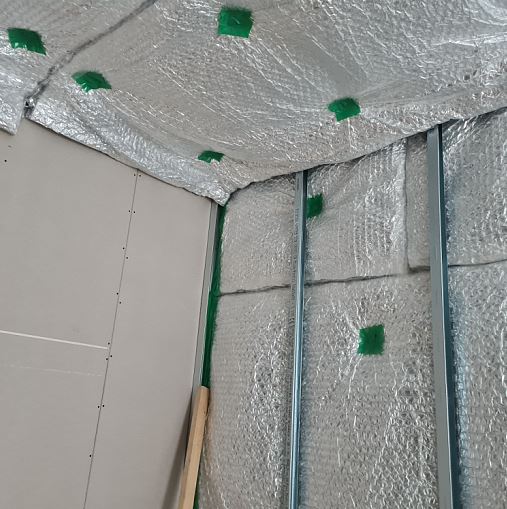

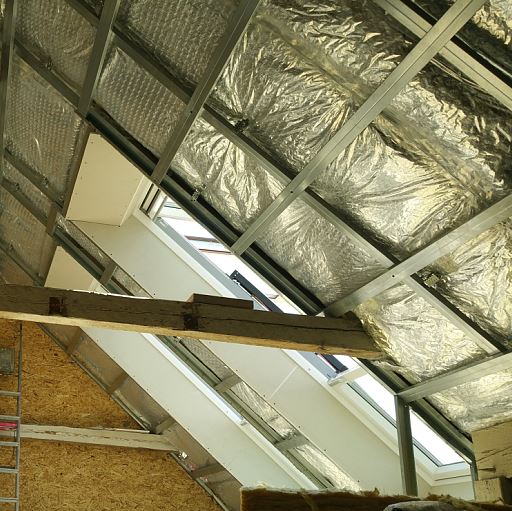

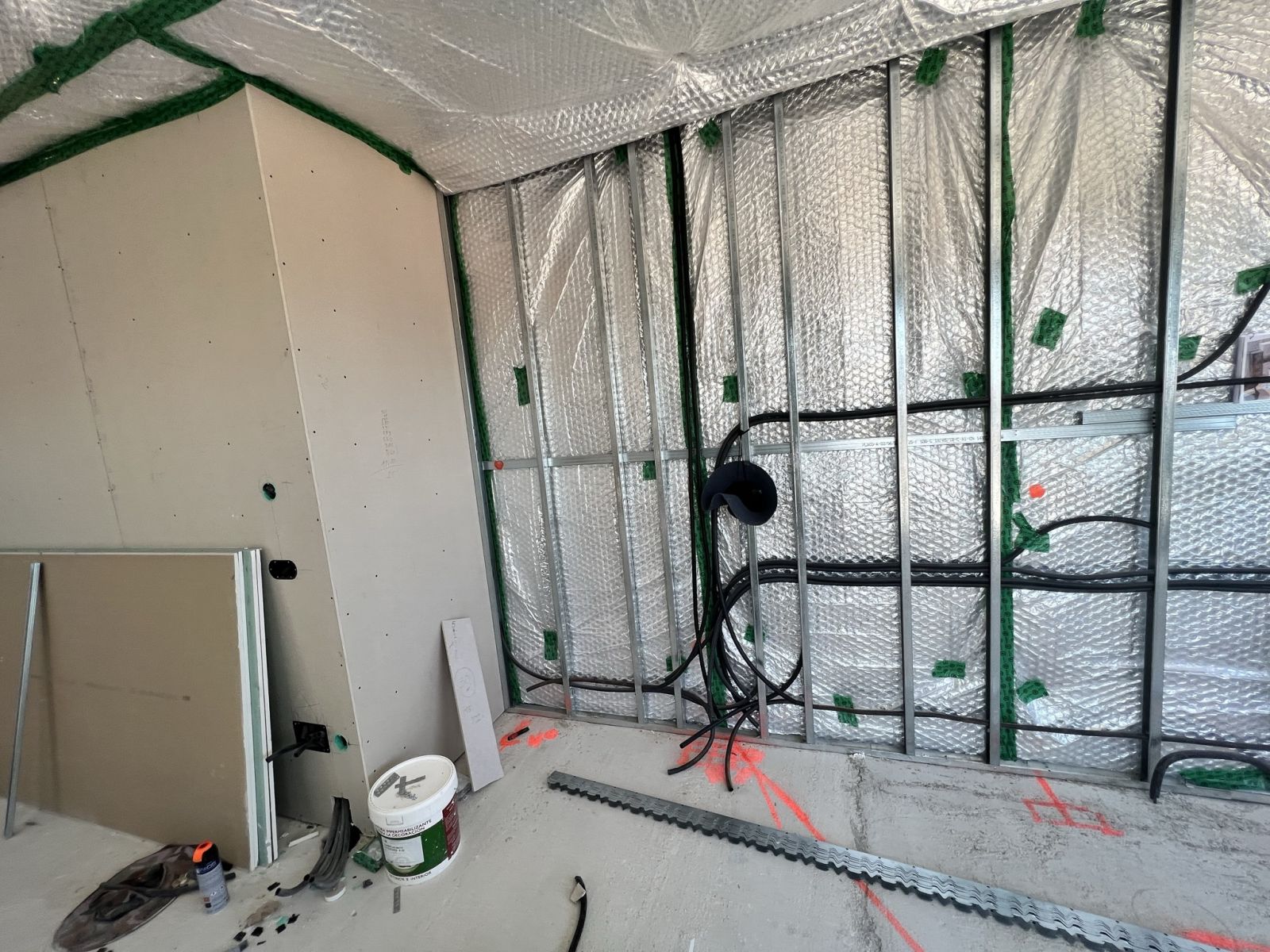

Pictures for illustration during installation:
